I am after I an aftermarket Paso clutch for a project I am working on , but other than a very expensive racing Kit offerred by an Italian co. I could not find anything elsei

I wanted a basket, a hub and a pressure plate possibly in Alloy, so I was hoping someone knows where to get them.

AlternatIvely are any of the modern parts (including the discs) c ompatible with the old clutch ?

I think all ducati clutches are the same, even wet and dry have same pattern plates with early 750paso having a plain and friction double sided 1st plate. (I have 1 of these somewhere if anyone needs it, brand new)
This company sells steel and alloy friction plates only and a lot of owners I know are using them, instead of buying friction and plain sets at double the price. I have a set of alloy in my 999 no problems.
http://www.ebay.co.uk/itm/Ducati-748-91 ... 2a0906fbe0
They should fit a Paso motor, (dry clutch yes?). A rumour is they are made by firm that supplies Ducati. Every so often Mortirize advertise 5%, 10% and I think 20% discount so worth putting in your ebay watch list if you don't need them yesterday.

K.

angelix, what are your plans and what is the clutch you mentioned ?

The only things you will find are different type of clutch discs i.e. with alloy carrier or sintered pads.
I do have a brandnew alloy clutch basket. A beautiful & lightweight piece I bought from an italian guy who had made a miniseries.

I always wondered if the general dimensions of the Paso and later clutch baskets were the same as it would be interesting to see if it was possible to fit a 40 tooth clutch kit if it only needed a groove machined for the securing spring.

G.

Discs are easy to find, you just need to be carefull and chose the DRY clutch version.

There are many opytuions including sintered, standard, with Alloy plates.... many prices and many brands.

as for the basket, drum and pressure plate, I managed to find the following:

- OLD RACING PARTS

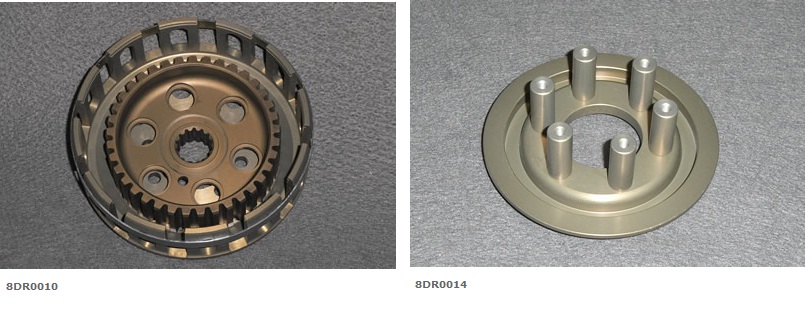

8DR0010 – F1 L.S. S.M. Montjuik Dry clutch kit = 463,60 Euro
8DR0014 - Pressure clutch plate light = 195,20 Euro

Then I checked with Ducati Dortmund development and they told me they still have the DRUMS only (135 Euros), plus they can supply the Dry clutch discs also in ALLOY version.

Then I checked with Ducati Kämna and they told me they have the Basket, beautifully made, (at 231 euros), but NO other parts.

all prices should be without VAT, so that needs to be added.

I am not sure if Kaemna and Dortmund Dev. could be mixed up, but in theory, why not?

Other suppliers ? if I manage to find anything else I will update the Thread.

There is very little out there, I wonder how many bikes with the old dry clutch F1/Paso Stile are still running out there...

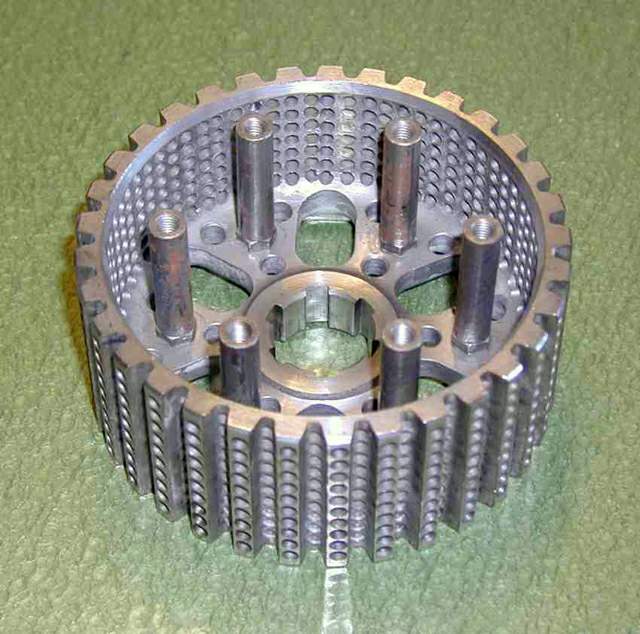

are the first two pics also Kaemna parts ?

the one that I have

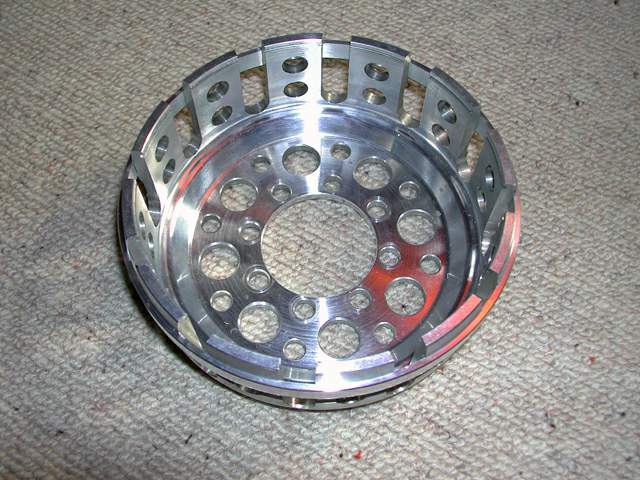

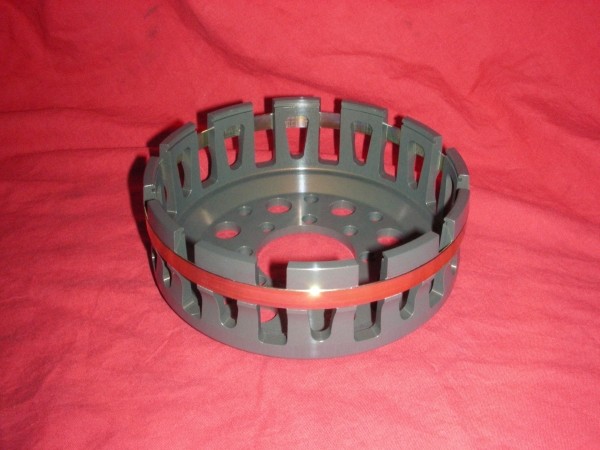

G., the first two pictures are from Old Racing Parts in Italy, the second is from Ducati Dortmund Development and the third is from Ducati Kämna

I have been working on an SS 750 project for years now and since the engine I have is the same as the one fitted on the Pasos , I have also the same clutch system.

everything is tuned, polished and lightened, I also have a nice brand new F1 racing clutch cover (drilled at the factory) the only thing missing is a lightened clutch.

I was hoping I could find things cheaper, these things are soooo expensive... I guess will end making my own!!!!

I do have the same thoughts, I too wonder is there is anything from the modern clutches that can be fitted or adapten on the old ones, I guess the only way to know is to try?!?!

Did you check with Ed Miltch ?

Ed Milich? I got his website and he does supply the lightened steel basket at a reasonable price, I will contact him and see what does he say.

As for the rest, I did notice the milling on the drum (internal where mates fith the shaft) is different looking at the Kaemna and the Old Racing Parts.

It should be like in the Kaemna picture, I guess the other is just for catalog purposes as the finer milling is typical of the later engines.

I woinder, is the original drum made of steel? I guess it is, by fitting it in aluminium I wonder how long will it last?

The one Ed is offering also on ebay is a used one. As it`s lightened quite a bit I wonder if it won`t open (spread) and cause clutch problems at higher rpms which is why most lightweight or performance baskets have the ring around them.

Alloy basket and drums will require alloy clutch discs or you`ll have chatter marks pretty fast.

If you have too much time you can do what this guy did

that is sick!!!!

nice work tho'

I had a reply form Ed, he advises not to use the alloy drums/hubs as they tend to crack.

I have the feeling a lot depends omn how they are made, I guess a that using forged 7075 alloy (ergal) would be better than the casted version (looks like) I found.

Anyway it is just an itch (or a monkey jumping on my shoulders), I am over 16 stone (100KG) and spending money on light parts is rather useless.... having said that, the monkey is demanding a nice light clutch...

Wow , Ed replied to you, I'll be buggered !

On a serious note, that is a coarse spline clutch hub ,that will NOT fit the paso or later models, only
the pantah's and 750 f1's , you need a fine spline for the sports and paso's.

If your motor has a coarse spline input shaft , it is either a early 750f1 or a 650 pantah motor.
if it is neither of these then you will have the short input shaft,that will not fit a dry clutch assy.

also you may have trouble with the 750f1 clutch cover as it has a larger hydraulic capacity than the
paso and sports.I was told by Ian gowanloch that the master cylinders are matched to covers for correct
operation.Not sure on that one as I havn't tried mine yet. rgds. J

The F1 clutch cover has a larger diameter bore than the paso for the piston,hence it requires more fluid from the master cylinder to operate.

I was warned that people have had trouble with incorrect clutch activation,by not using the matching master cyld.

I'm not sure on that as I wont be able to test mine for a while longer,but if you do have trouble,this could be a reason.I don't usually operate on heresay but Ian is very knowledgeable on ducati's,so I thought that I would pass the information along.

The later model 750f1's have a fine spline input,the same as a paso.
The earlier 750f1 ,650 pantah and allazura motors run a coarse spline input.
There is also a coarse spline wet clutch input shaft that looks the same but is 4 or 5mm shorter and cannot accept a dry clutch modification.

rgds jay
